PolyplasSince 1989

Reinforcing Materials

Textile cord and steel wire from the world's principal producers, holding the shape and the load of every tyre built in India.

Cord and wire decide what a tyre can carry, how true it runs, and how it holds its shape at speed and temperature.

The skeleton that carries the load.

Cords, wires and fabrics decide a tyre's strength, dimensional stability and load capacity. Polyplas supplies textile and metallic reinforcement from world-leading cord producers, Junma nylon-6, Kordsa polyester and nylon-6,6, to tyre plants across India.

Polyplas supplies tyre reinforcement materials in India: nylon-6 and nylon-6,6 tyre cord fabric, polyester (PET) tyre cord for passenger radials, brass-coated steel cord for belt packages, bronze-coated bead wire, and hose wire. Principals include Junma (China) for nylon-6 cord and Kordsa Global (Turkey) for polyester and nylon-6,6.

A tyre is built outward from the bead.

Bead wire anchors it to the rim. The carcass ply carries the load. Steel belts hold the tread flat against the road, and the cap ply keeps everything where it was put at two hundred kilometres an hour.

The carcass,
built outward.

  1. Tread cap
  2. Nylon cap ply
  3. Steel belt
  4. Polyester carcass
  5. Inner liner
  6. Bead wire

Cord and wire decide what a tyre can carry and how true it runs. Polyplas supplies the textile and the steel.

What we carry, and
what it is for.

Five reinforcements,
one anatomy.

Every product Polyplas carries in this category sits somewhere in the same radial section. Hover a layer to place it.

CAP PLYBELT PACKAGEBODY PLYBEAD BUNDLEHOSE REINFORCEMENTHOSE WIRE · SEPARATE LINE

Half-section of a radial tyre with a separate panel for hose reinforcement.

Property emphasis across the family
Nylon 6Nylon 6,6PolyesterSteelBead
Tensile strength
Fatigue life
Dimensional stability
Adhesion to rubber
Heat resistance
Elongation reserve

Four ticks · dominant · three ticks · strong · two · adequate · one · limited

02 · textile · polyamide

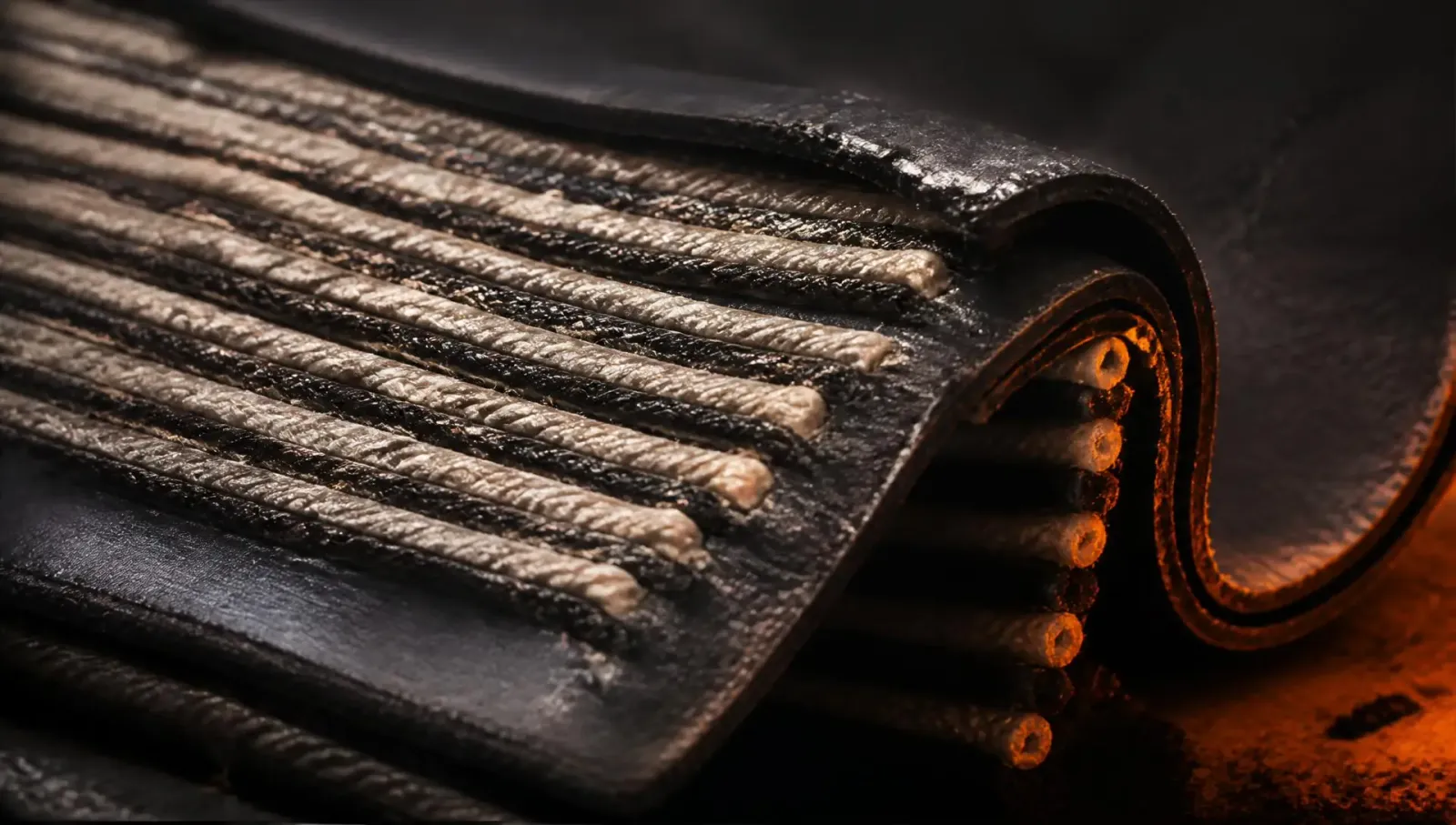

Nylon Tyre Cord Fabric & Yarn

Grades
Polyamide 6 (Nylon 6) · Polyamide 6,6 (Nylon 6,6)
Applications
Carcass ply, truck, bus, two-wheeler, OTR · cap ply in passenger radials

Nylon cord is the workhorse textile of India's tyre industry. High strength-to-weight, excellent fatigue resistance, dependable adhesion to rubber.

Polyplas supplies greige and dipped fabric in Nylon 6 and Nylon 6,6 from internationally certified producers, with Junma of China among its principals.

Cap ply · helical winding

BELT PACKAGENYLON 6,6 · 840–1400 D · EDGE-TO-EDGE
A single strip winds edge-to-edge over the belt at high-speed radial cure.
Representative construction
Yarn typeNylon 6 · Nylon 6,6
Denier840 · 1260 · 1400 · 1680
Twist (tpm)390 × 390 typical
FormGreige · dipped fabric
Elongation at break18–22%

Ends up in

  • TBR body ply

    Load bearing

  • PCR cap ply

    Nylon 6,6

  • OTR carcass

    Fatigue life

  • 2/3 wheeler

    Cost + reliability

03 · textile · PET

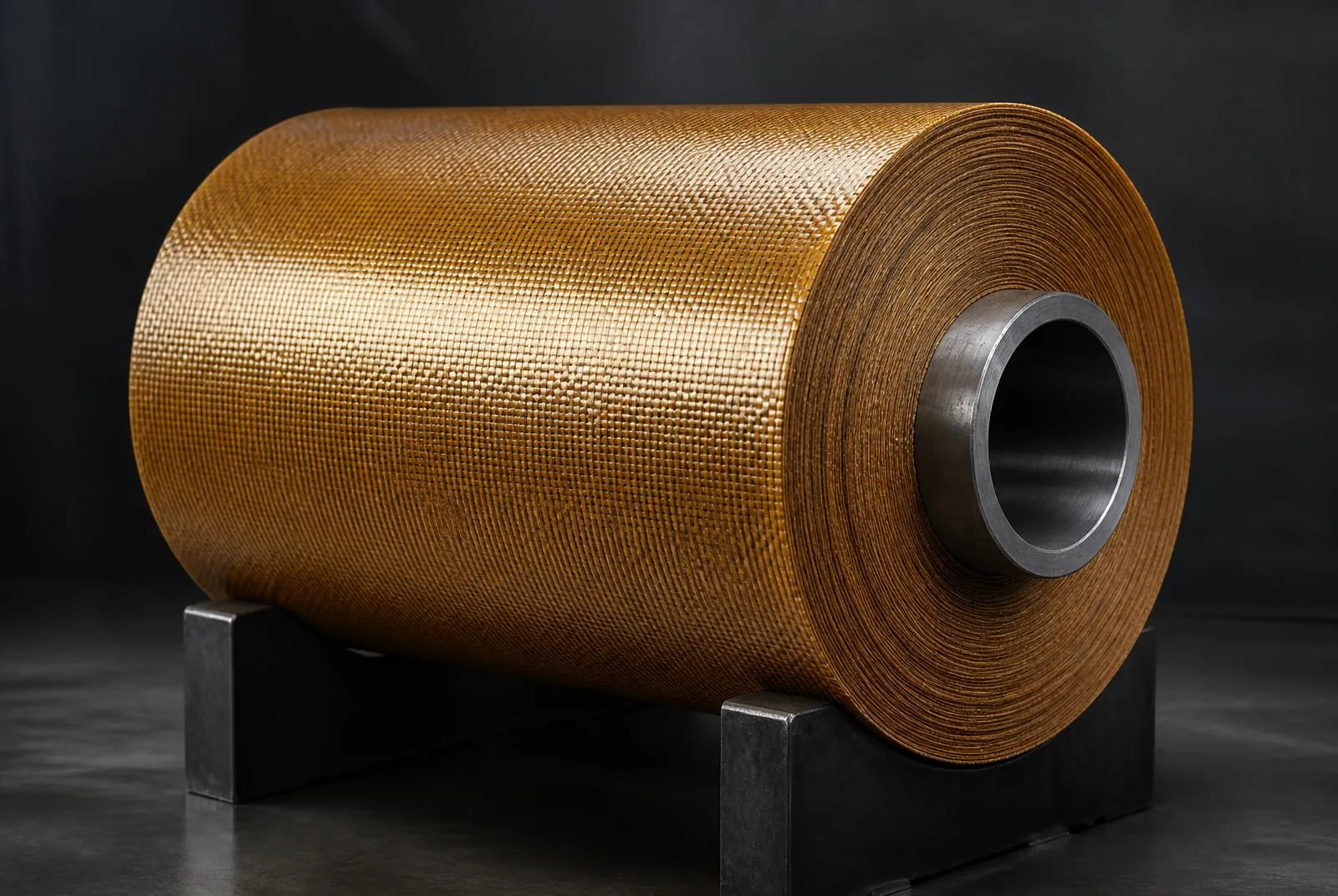

Polyester Tyre Cord Fabric & Yarn

Grades
Polyethylene Terephthalate (PET)
Applications
Carcass ply, passenger car radials, light truck radials

PCR carcasses are built on polyester. High modulus, low elongation, dimensional stability, a comfortable ride that still steers precisely.

Polyplas supplies PTCF from Kordsa Global of Turkey and other leading producers, to OEM and replacement-market specification alike.

Body ply · warp / weft

RFLHIGH-MODULUS PET · RFL-DIPPED
Aligned PET warp bears load; sparse pick weft holds spacing until calendering.
Representative construction
Yarn typeHigh-modulus PET
Denier1000 · 1440 · 1500
Twist (tpm)470 × 470 typical
ModulusHigh · low shrinkage
FormGreige · dipped fabric

Ends up in

  • PCR carcass

    Modulus + comfort

  • Light truck

    Radial body ply

  • Speciality

    Agricultural, industrial

04 · metallic · brass-coated

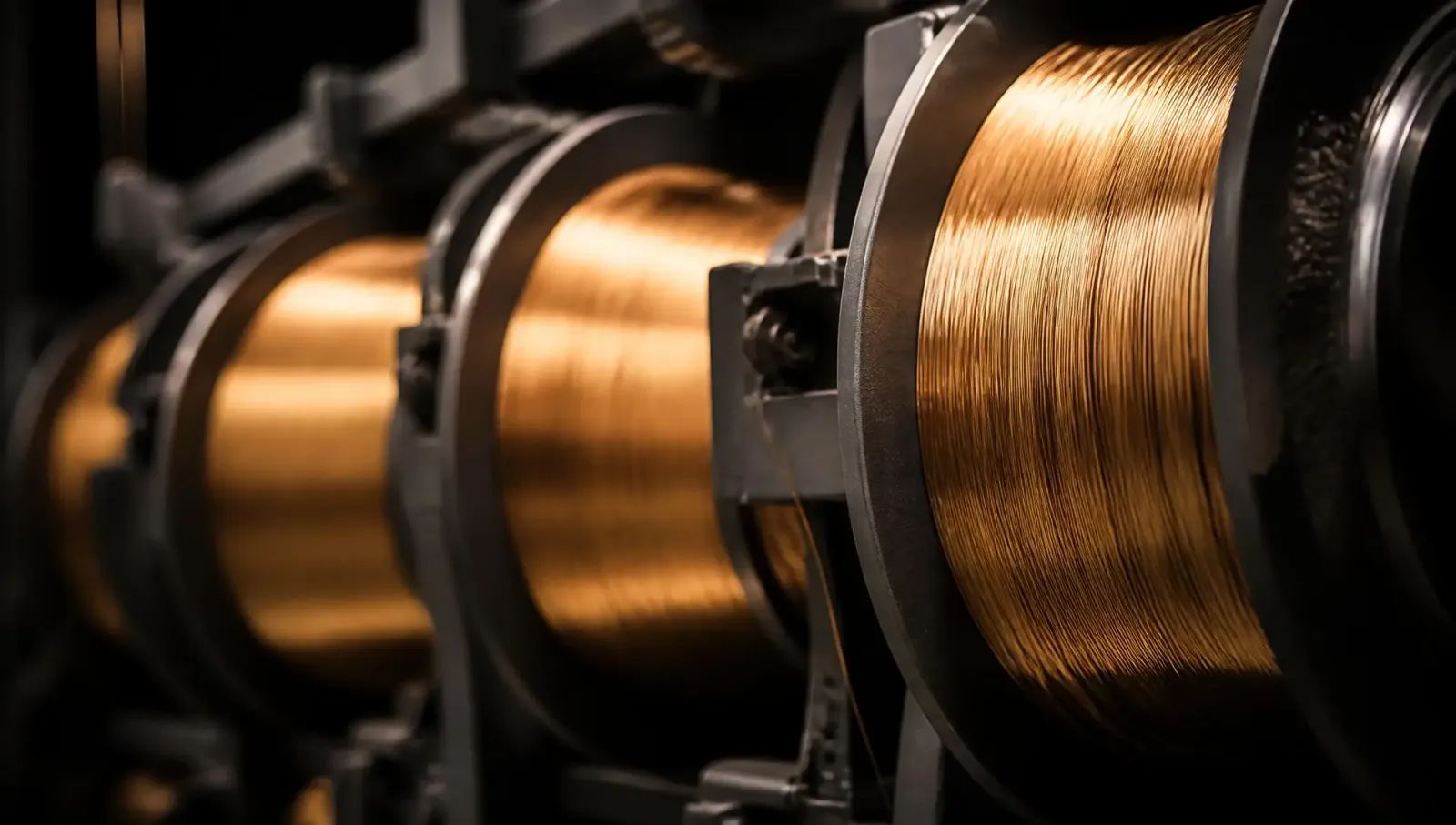

Steel Tyre Cord

Grades
High-carbon steel, brass-coated · compact, normal & HE constructions
Applications
Belt packages in PCR and TBR · carcass ply in truck radials

The belt package is where a radial earns its name, and steel cord is what makes it work: rigidity, puncture resistance, load capacity.

Polyplas covers compact, normal and high-elongation constructions from world-leading wire manufacturers, matched to the application.

Steel cord · 3+9+15

BRASS · Cu 63–67%TBR BELT · 27 FILAMENTS · Ø 0.22 MM
Twisted filaments; brass coating gives rubber a chemistry to bond to.
Representative construction
Construction2+2 · 3+9+15 · 4+9+15
CoatingBrass Cu 63.5–67.5%
Tensile gradeNT · HT · SHT · UT
ElongationNormal / high-elongation
Line densityTo customer spec

Ends up in

  • PCR belt

    2+2 typical

  • TBR belt

    3+9+15

  • TBR carcass

    Steel radial

05 · metallic · bronze-coated

Bead Wire

Grades
High-carbon steel, bronze-coated · single-end and multi-strand
Applications
Bead bundle in every tyre type, locks the tyre to the rim

The bead is the one part of a tyre that must never stretch. Polyplas supplies high-tensile bronze-coated bead wire across the full range of cross-sections used by the Indian industry, from internationally certified mills.

Bead wire · hex-packed bundle

BRONZE · Sn 2.5–4%19 WIRES · Ø 0.96–1.83 MM · UTS 1800–2200 MPa
Every tyre locks to the rim through a wound bundle of bronze-coated high-carbon steel.
Representative construction
GradeHigh-carbon steel wire
CoatingBronze, Sn 2.5–4%
Diameter0.96 · 1.30 · 1.55 · 1.83 mm
Tensile strength1800–2200 MPa
FormSingle-end · multi-strand

Ends up in

  • Every tyre

    Locks to rim

  • PCR · TBR · OTR

    Full section range

06 · metallic · high-tensile

Hose Wire

Grades
High-tensile steel wire
Applications
Reinforcement of hydraulic, industrial and speciality hoses

A natural extension of the bead wire programme: the same world-class mills, supplying the reinforcement layer for high-pressure rubber hose manufacturers.

Braid vs spiral

BRAID1–2 LAYERS · FLEXSPIRAL4 OR 6 LAYERS · HIGH PRESSURE
Braid for pressure with flex; spiral for the highest steady pressure.
Representative construction
GradeHigh-tensile steel
Diameter0.25–0.80 mm
CoatingBrass · zinc as required
Tensile strength≥ 2400 MPa
Layer count1, 2, 4 or 6 spirals

Ends up in

  • Hydraulic hose

    Wire braid + spiral

  • Industrial hose

    High pressure

Textile and metallic
2reinforcement familiesTextile and metallic
Bead to cap ply
4structural layersBead to cap ply
Supplying Indian carcass lines
35+yearsSupplying Indian carcass lines

Sourced from
Kordsa and Junma.

Turkey and China · Polyester, nylon-6,6 and nylon-6 tyre cord

Two of the largest cord producers in the world supply India through Polyplas. Dipped fabric, greige and yarn, in the constructions Indian plants actually build to, held in local stock rather than on a vessel.

See every principal
Reinforcing Materials held in Polyplas warehousing
Warehoused in India, released to schedule

In the warehouse.

Held in India, in the right condition, released against your schedule.

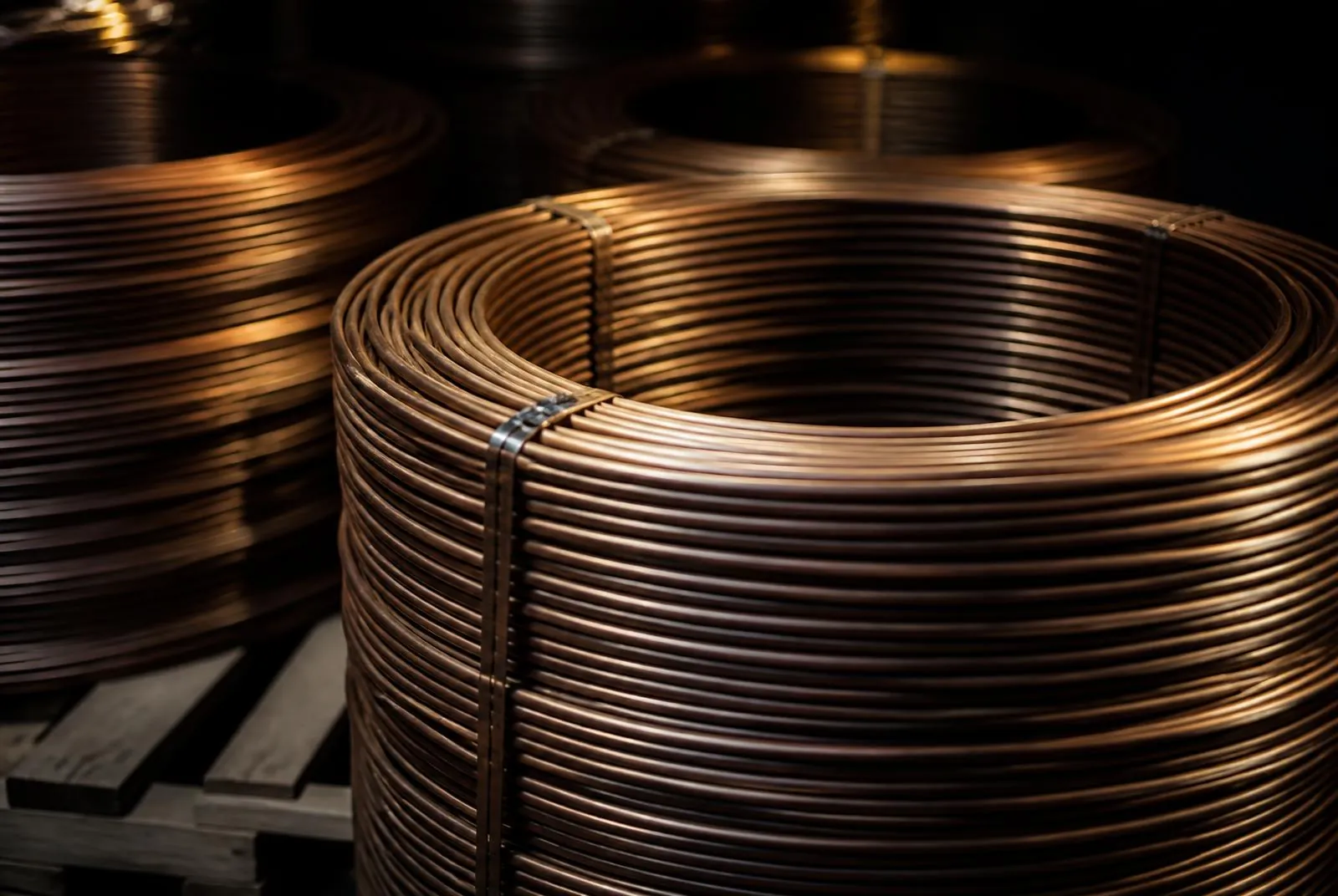

Bronze-coated bead wire coils
Bronze-coated bead wire coils

Tell us the construction.
We hold the cord.

Start an enquiry
